Download Tools

• Windows 7 SP1 x86 mirror Xunlei download link
• VMWare Workstation 16 (link below)
• WinDbg Preview(Microsoft Store)

Install Windows Virtual Machine

Initially use Windows 7 SP1 x86 as an example to learn

• MSDN download the official image
• VMWare Workstation 16 to build a virtual environment
  • Download: VMWare 16 Link
  • Key: ZF3R0-FHED2-M80TY-8QYGC-NPKYF

Configure the Windows kernel debug virtual machine

Remove the printer device from this virtual machine

Add serial serial port

• Click Use named pipe
• Fill in the string: \\.\pipe\Windows7x86 (you can fill in the pipeline naming you wish, but you can only modify the Windows7x86 location)
• Below select that end is the server and the other end is the application
• In I/O mode, select Active abort when polling

The configuration is completed as shown below

Configure Windows 7

• Enter the command msconfig and click boot as shown below

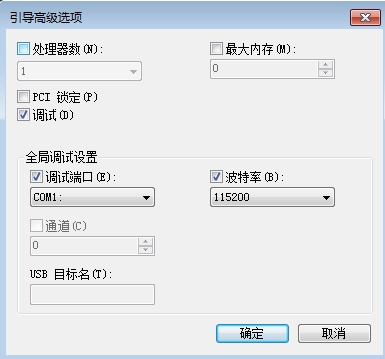

• Click on advanced options, enable debugging, baud rate, as shown

Configure WinDbg Preview

• First start the proxy network for unlocking GFW restrictions
• Set up WinDbg’s symbol server and local cache directory SRV*D:\LocalSymbols*http://msdl.microsoft.com/download/symbols
• Attach to kernel-COM-check all the checkboxes you can-fill the baud rate-fill the port with \\.\pipe\Windows7x86
• Click OK to debug the virtual machine kernel
• Set WinDbg’s symbol server proxy set _NT_SYMBOL_PROXY=proxy server address:port number
